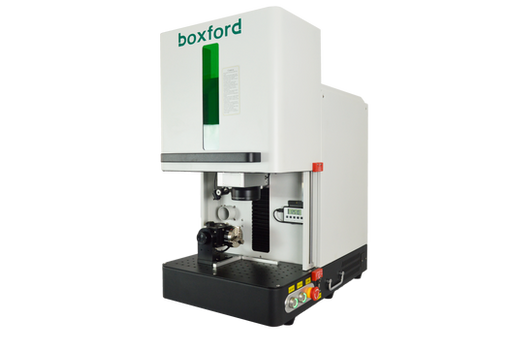

Fibre Marking Lasers
Our fibre marking lasers include:
-
Ability to mark a range of metals and some non-metals
-
Ability to permanently mark logos, bar codes, QR codes and serial numbers
-
Fully enclosed machine casing for safety and fume management
-
Galvo laser head for rapid marking and engraving
-
Motorised Z axis with digital focus height readout
-
Dual red dot focusing system for quicker positioning
-
Windows software which accepts multiple formats including: DXF, AI, JPEG, BMP and more...
-
12 months warranty
(All prices shown are excluding VAT)
Included accessories
Useful accessories included with machine:
Windows software & drivers
Operator cycle start foot operated switch
Motorised Z axis adjustment
CE marked safety door guard switches
12 months warranty (excluding consumable items such as extraction filters)
From:
Included
(Included in UK only price)
BFM110 30W
*200mm x 200mm work area
Power 30w Fibre Laser
(1064nm WL)
Weight 90kg
Dimensions 470w x 720d x 740h
Operation modes scan marking / engraving
Min character 0.3mm
Min line width 50μm
Class 1 closed configuration
*with optional additional 290mm focal length lens (110x110 work area when using included 160mm focal length lens)
From:
£5995.00
(UK only price)
Optional accessories
Optional accessories for Boxford fibre marking machine including:
Automated tilting rotary device for engraving cylindrical objects
Automated foot switch operated guard
Filtered fume extraction
290mm focal length lens (BFM 30W & 50W models only)
From:
Price varies
(Please contact us for more info)
BFM110 50W
*200mm x 200mm work area
Power 50w Fibre Laser
(1064nm WL)
Weight 90kg
Dimensions 470w x 720d x 740h
Operation modes scan marking / engraving
Min character 0.3mm
Min line width 50μm
Class 1 closed configuration
*with optional additional 290mm focal length lens (110x110 work area when using included 160mm focal length lens)
From:
£8195.00
(UK only price)
Finance options available upon request
We offer a range of finance options to help you make your next machine
investment. Speak to a member of our team who will be able to help...
+44 (0)1422 324810
