CNC Routers

Our range of 3-axis CNC high performance routers are ideal for education, training & design applications:

  • Integrated touch sensitive control panel

  • Interlocked solenoid guarding for safe usage

  • Precision ground linear slides on all axes

  • Latest motion control technology to produce a smooth & fast 3D environment

  • USB interface

  • Single seat of 'Boxford CAD/CAM Design Tools' allowing import of multiple formats including: 3D CAD files, JPEG, BMP & PCB Gerber files.

  • 12 months warranty


A3HSRmi²

Bench top PC controlled CNC router

Bench top CNC Routers suitable for machining hardwood, softwood, manufactured boards, plastics, aluminium alloys and brass.

From:

POA

Full Brochure
Specifications
Full manual indexer.jpg

Optional accesories

Accessories for all Boxford router machines including:

Portable cabinet base

Removable vacuum bed

High performance extractor

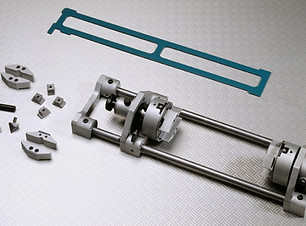

Manual rotary indexer

Auto rotary indexer

Lathe attachment

From:

POA

Full Brochure
Specifications
Extended bed CNC router for wood and plastics

A3HSRmi² EX

Bench top PC controlled CNC router with 350mm extra machining area

Extended capacity version of the A3HSRmi² machines, offering 350mm extra machining area to accommodate a larger variety of work.

From:

POA

Full Brochure
Specifications
CAD/CAM desgn tols software screenshot

CAD/CAM Design Tools software

A single seat of Boxford CAD/CAM Design Tools is included with every machine. Features include:

2D design packages for turning & milling



CAM routines to machine 2D CAD drawings & 3D CAD drawings

​

Ability to lock and unlock user levels for both safety and to aid user learning

From:

Included

Full Brochure
More info
Floor standing CNC router for wood and plastics

A1HSRi²

Floor standing PC controlled CNC router

Large format floor standing router. Ideal for machining full size furniture as well as other large scale 3D work from soft woods, manufactured boards, foam, plastics & other synthetic materials.

From:

POA

Full Brochure
Specifications
Router spec

Specifications

A3HSRmi²

A3HSRmi² EX
A1HSRi²

Axis travel

Table area

Spindle motor

Spindle speed

Electrics

Programmable feed

Rapid feed rate at 100%

3D profiling up-to

Aluminium alloy / brass

x   575mm

y   325mm

z   130mm

x   925mm

y   325mm

z   130mm

x   1235mm

y   625mm

z   130mm

1295mm x 720mm

1100mm x 400mm

750mm x 400mm

​

1000w high frequency constant duty

1000w high frequency constant duty

1000w high frequency constant duty

8,000 - 23,000 rpm

8,000 - 23,000 rpm

8,000 - 23,000 rpm

110/220/240 V 1 phase

110/220/240 V 1 phase

110/220/240 V 1 phase

5,000mm/min

5,000mm/min

6m/min (14m/min)

5,000mm/min

5,000mm/min

6m/min (14m/min)

10m/min (24m/min)

8,500mm/min

8,500mm/min

✔

✔

✘
